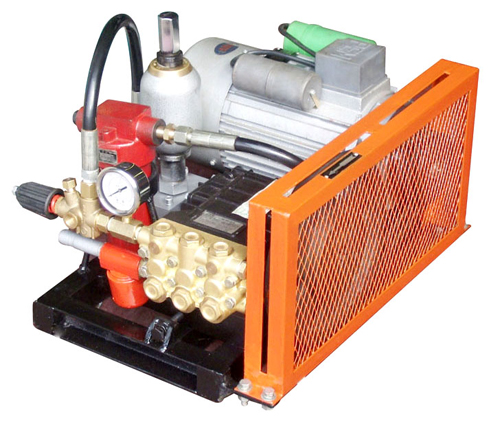

High Pressure Water Injection Pump UDOR
The pump hydraulic side has the relief valve, throttle valve, its own system, adjustable throttle valve is applicable to different traffic.
Can form a complete set for the user a variety of cleaning machines, valves, high pressure rubber hose, spray gun, etc. According to user requirements, equipped with all kinds of diesel engines.
Performance Parameters
|
Rated Pressure |
20Mpa |
Rated Capacity |
20L/min |
|
Stroke Length |
10mm |
Speed |
3000r/min |
|
Plunger Diameter |
15mm |
// |
// |
Note: above parameters are theoretical data when the medium proportion is 1.0.
