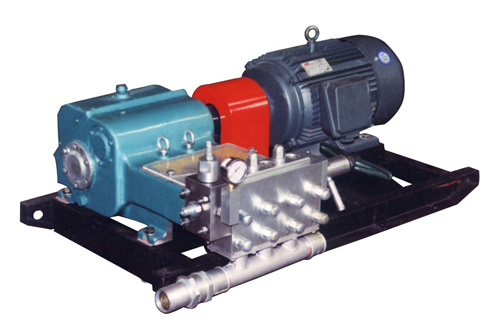

High Pressure Water Injection Pump 3S1
3 s1 series high pressure reciprocating pump can be used as high pressure water source of power. Used for size diameter pipeline cleaning, vessel cleaning, water cleaning, derusting, auxiliary parts piling, water corrosion cutting purposes. Can transport water, emulsion and the liquid chemical properties similar to the who.
The pump hydraulic end is equipped with safety valve, throttle valve, its own system, adjustable throttle valve in order to apply different flow.
Can form a complete set for the user a variety of cleaning machines, valves, high pressure rubber hose, spray gun, etc.
According to customer requirements. Equipped with all kinds of diesel engines.
Performance Parameter List
|
Input Speed |
1470r/min |
Stroke Length |
70mm |
||||
|
Theoretical Capacity |
Motor Power（KW） |
Plunger Diameter |
|||||
|
7.5 |
11 |
15 |
18.5 |
22 |
|||
|
M3/h |
L/min |
Rated Discharge Pressure（Mpa） |
|||||
|
1.00 |
17.8 |
15.4 |
24.5 |
// |
// |
// |
15 |
|
1.90 |
31.6 |
8.7 |
13.8 |
20 |
28 |
34 |
20 |
|
2.30 |
38 |
7.2 |
11.5 |
16.9 |
23.8 |
28 |
22 |
|
2.90 |
49 |
5.6 |
8.9 |
13 |
18.5 |
22 |
25 |
|
3.70 |
62 |
4.4 |
7.0 |
10.3 |
14.6 |
17 |
28 |
|
4.27 |
71 |
3.8 |
6.0 |
9.0 |
12.7 |
15 |
30 |
|
4.86 |
81 |
3.4 |
5.4 |
7.9 |
11 |
13 |
32 |
|
5.80 |
97 |
2.8 |
4.5 |
6.6 |
9.0 |
11 |
35 |
|
7.60 |
126 |
// |
3.4 |
5 |
7 |
8 |
40 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
