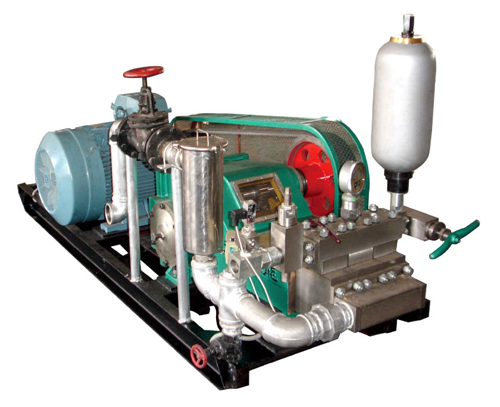

High Pressure Cleaning Machine TLB
TLB series high pressure wangfu as high pressure water pump power. For size diameter pipeline cleaning, ships the workpiece, cleaning, derusting, powder metallurgy and other fields, can transport water, emulsion and the liquid chemical properties similar to water. The pump hydraulic end is equipped with safety valve, throttle valve, its own system, the flow of the adjustable throttle valve is suitable for various requirements. The pump power end for bearing transmission (between the crankshaft and connecting rod). Using splash lubrication, the lubrication can be 24 hours of continuous operation, without cooling. According to user requirements, equipped with all kinds of power supply.
Special tip: because TLB pump flow rate is bigger, the size of nozzle used must be matching with pump flow and pressure of work, if the nozzle is too small, a lot of water through the overflow valve discharge will cause return line jitter, and even cause a shaking of the pump.
Performance Parameter List
|
Input Speed |
1480r/min |
Stroke Length |
70mm |
||||||
|
Theoretical Capacity |
Motor Power（KW） |
Plunger Diameter
mm |
|||||||
|
37 |
45 |
55 |
75 |
90 |
110 |
||||
|
M3/h |
L/min |
Rated Discharge Pressure（Mpa） |
|||||||
|
9.80 |
164 |
11 |
14 |
17 |
25 |
30 |
37 |
40 |
|
|
12.4 |
207 |
8.7 |
11 |
14 |
20 |
24 |
29 |
45 |
|
|
15.4 |
257 |
7 |
9 |
11 |
16 |
19 |
23 |
50 |
|
|
18.6 |
311 |
5.8 |
7.5 |
9 |
13 |
16 |
19 |
55 |
|
|
22 |
370 |
4 |
6 |
7.5 |
11 |
13 |
16 |
60 |
|
Note: above parameters are theoretical data when the medium proportion is 1.0.
