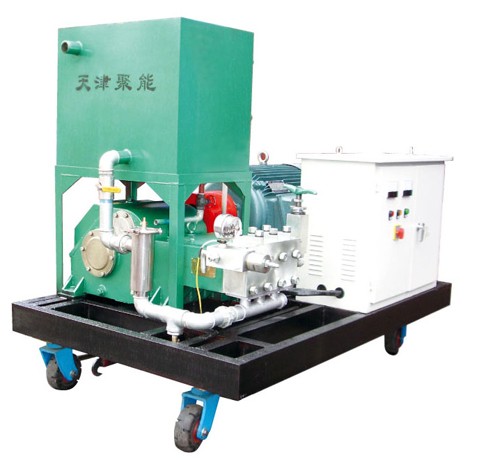

QX-700 Series High Pressure Cleaning Machines
QX - 700 series high pressure cleaner fixed QXD1 / QXD2 and mobile QXC1 / QXC2 two kinds, is suitable for the size of caliber pipeline cleaning, heat exchanger, condenser, ships, chemical cleaning, cleaning, oil fields, buildings, and other artifacts of cleaning cleaning.
This product the power end of transmission () between the crankshaft and connecting rod bearing type. Using splash lubrication, the lubrication can be 24 hours of continuous operation, without cooling. This product hydraulic end is equipped with safety valve, throttle valve, its own system, adjustable throttle valve to meet the needs of different flow rate.
This product has the following features:
1. Using a single gun, gun, differential pressure range is small.
2. Use as type spray gun using foot safe, convenient, can guarantee the working clearance reciprocating pump in a state of low pressure (no load).
3. The pressure stability, low noise, easy operation, convenient maintenance.
This product is equipped with a high pressure rubber hose, spray gun, common nozzle.
Performance Parameter List
|
Input Speed |
1480r/min |
Stroke Length |
100mm |
||||
|
Diesel power |
50horsepower 60horsepower 75horsepower 100horsepower 120horsepower |
Plunger Diameter
mm |
|||||
|
Motor Power |
37KW |
45KW |
55KW |
75KW |
90KW |
||
|
Theoretical Capacity |
Rated Discharge Pressure（Mpa） |
||||||
|
M3/h |
L/min |
||||||
|
4.2 |
70 |
28 |
35 |
42 |
57 |
70 |
30 |
|
4.80 |
80 |
26 |
32 |
39 |
53 |
62 |
32 |
|
5.70 |
95 |
21.5 |
26 |
32 |
44 |
50 |
35 |
|
7.38 |
123 |
16.5 |
20 |
25 |
34 |
40 |
40 |
|
9.36 |
156 |
12 |
16 |
19.5 |
26.5 |
30 |
45 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
