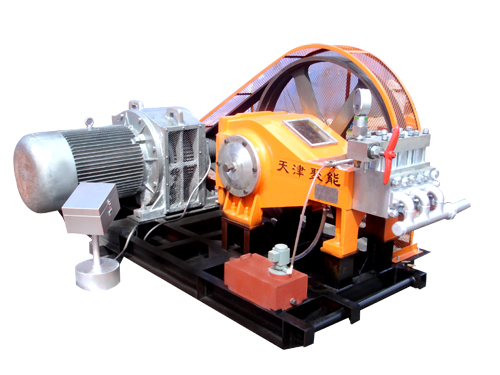

High Pressure Grouting Pump XPB-90D-1
This product is designed according to the market demand of high pressure grouting pump. This product combined split type pump hydraulic end, motivation to use needle bearing type transmission, low noise, low temperature, ensure 24 hours of continuous operation, suitable for foundation treatment of high-pressure rotary jet grouting, curtain grouting, soil retaining cofferdam anchorage, mine well plugging, the barrel wall, slope and other fields.
Performance Parameters
|
Maximum Motor Speed |
1320r/min |
Stroke Length |
65mm |
|||
|
Theoretical Capacity |
Motor Power（KW） |
Plunger Diameter
mm |
||||
|
45 |
55 |
75 |
90 |
|||
|
M3/h |
L/min |
Rated Discharge Pressure（Mpa） |
||||
|
7.0 |
116 |
16 |
21 |
30 |
36 |
60 |
|
5.9 |
98 |
20 |
24 |
35 |
43 |
55 |
|
4.8 |
80 |
24 |
30 |
44 |
50 |
50 |
|
4.0 |
65 |
30 |
37 |
50 |
// |
45 |
|
3.1 |
51 |
38 |
47 |
// |
// |
40 |
|
24 |
39 |
49 |
// |
// |
// |
35 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
