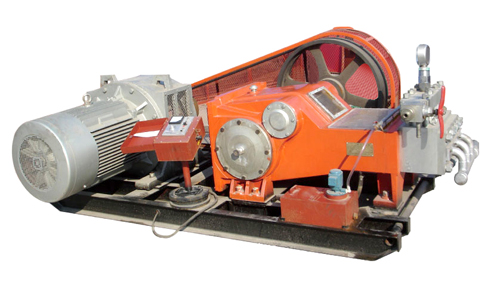

High Pressure Profile Control Pump CYB-1
This product is designed according to the market demand of high pressure grouting pump. This product power to use needle bearing structure, low noise, low temperature, ensure 24 hours of continuous operation, suitable for high pressure, big flow of foundation treatment, high-pressure rotary jet grouting, curtain grouting, soil retaining cofferdam, flood protection in mines, the wellbore wall, slope anchorage, etc.
Performance Parameter List
|
Theoretical Capacity |
Motor Power |
Plunger Diameter |
Diameter of Suction Pipe |
Inner Diameter of Discharge Pipe |
||
|
90 |
110 |
|||||
|
M3//h |
L/min |
Rated Discharge Pressure（Mpa） |
|
Mm |
Mm |
Mm |
|
5.460 |
91 |
50 |
// |
Ф50 |
Ф32 |
Ф25 |
|
6.600 |
110 |
42 |
50 |
Ф55 |
||
|
7.860 |
131 |
35 |
43 |
Ф60 |
||
|
9.120 |
152 |
30 |
37 |
Ф60 |
Ф36 |
Ф32 |
|
10.74 |
179 |
26 |
32 |
Ф65 |
||
|
12.42 |
207 |
22 |
27 |
Ф70 |
||
|
14.28 |
238 |
19 |
24 |
Ф75 |
Ф48 |
Ф38 |
|
16.26 |
271 |
17 |
21 |
Ф80 |
||
|
18.36 |
306 |
15 |
18 |
Ф85 |
||
Note: above parameters are theoretical data when the medium proportion is 1.0.
