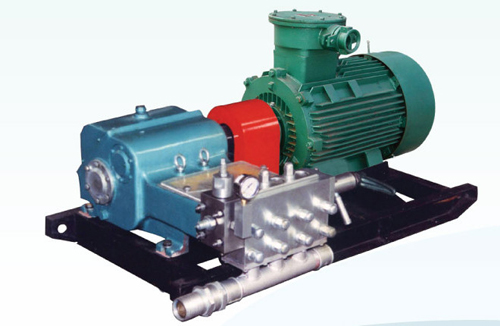

Series 1 of Pump for Coal Mine 3ZSB
The product has small volume, compact structure. The integral hydraulic on the pump head, the power to use needle bearing form, without cooling. Suitable for the coal mine coal seam water injection, hydraulic prop, may transport the emulsion), etc. And pressure stability, low noise.
|
Model |
Rated Capacity
L/min |
Rated Discharge Pressure
Mpa |
Plunger Diameter
mm |
Stroke Length
mm |
Matching Motor Power |
|
3ZSB97/6-15 |
97 |
6 |
35 |
70 |
15 |
|
3ZSB126/5-15 |
126 |
5 |
40 |
70 |
15 |
|
3ZSB71/9-15 |
71 |
9 |
30 |
70 |
15 |
|
3ZSB62/10-15 |
62 |
10 |
28 |
70 |
15 |
|
3ZSB49/13-15 |
49 |
13 |
25 |
70 |
15 |
|
3ZSB31/20-15 |
31 |
20 |
20 |
70 |
15 |
|
3ZSB126/7-18.5 |
126 |
7 |
40 |
70 |
18.5 |
|
3ZSB97/9-18.5 |
97 |
9 |
35 |
70 |
18.5 |
|
3ZSB71/12-18.5 |
71 |
12 |
30 |
70 |
18.5 |
|
3ZSB62/14-18.5 |
62 |
14 |
28 |
70 |
18.5 |
|
3ZSB49/18-18.5 |
49 |
18 |
25 |
70 |
18.5 |
|
3ZSB31/28-18.5 |
31 |
28 |
20 |
70 |
18.5 |
|
3ZSB71/15-22 |
71 |
15 |
30 |
70 |
22 |
|
3ZSB62/17-22 |
62 |
17 |
28 |
70 |
22 |
|
3ZSB49/22-22 |
49 |
22 |
25 |
70 |
22 |
|
3ZSB31/34-22 |
31 |
34 |
20 |
70 |
22 |
|
3ZSB126/8-22 |
126 |
8 |
40 |
70 |
22 |
|
3ZSB97/11-22 |
97 |
11 |
35 |
70 |
22 |
|
3ZSB71/13-22 |
81 |
13 |
32 |
70 |
22 |
Note: above parameters are theoretical data when the medium proportion is 1.0.
