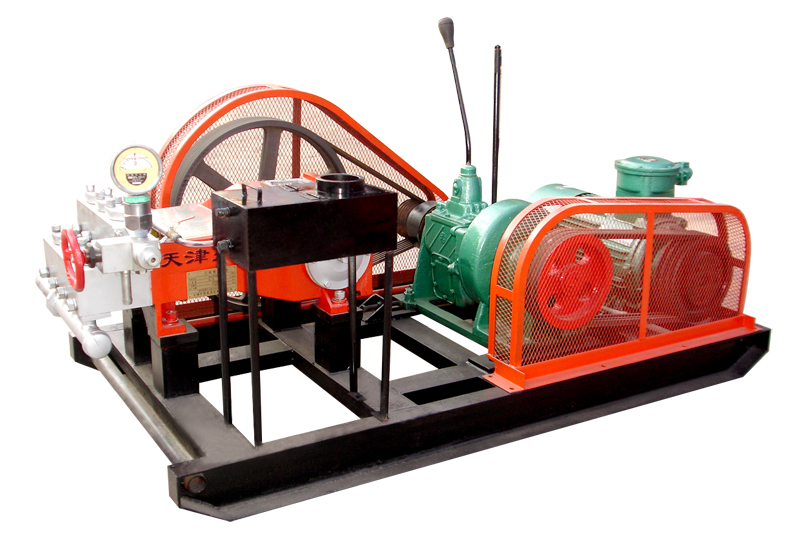

Pump for Coal Mine 3ZB38-248
This product is my company according to the different strata of a specially designed for coal mine underground high-pressure grouting pump. With four shift transmission. May change at any time according to user requirements of pump working pressure and flow rate. Hydraulic end using combined fission pump head, convenient disassembly, power side needle roller bearing type transmission, low noise, low temperature rise, can work 24 hours continuously.
Performance Parameter List
|
Plunger Diameter |
Φ60mm |
Stroke Length |
110mm |
||||
|
Matching Motor Power |
30KW |
Number of Gears |
4 |
||||
|
Gears |
Total Variable Ratio |
Plunger Reciprocating Frequency |
Capacity（L/min） |
Pressure（bar） |
|||
|
4 |
5.4 |
272 |
248 |
40 |
|||
|
3 |
9.1 |
162 |
147 |
85 |
|||
|
2 |
16.73 |
88 |
80 |
170 |
|||
|
1 |
34.5 |
43 |
38 |
300 |
|||
Note: above parameters are theoretical data when the medium proportion is 1.0.
